Home Products Steering

Tie Rod Adjuster Sets

  Technical Data Sheet
Installation Guide



Sleeves Only

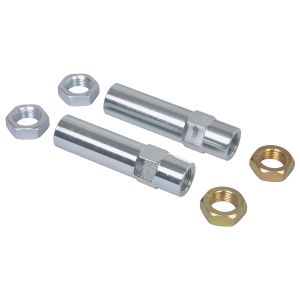

Billet Tie Rod Adjuster Sleeves

See the E-STORE CATEGORY Our heavy duty billet tie-rod adjusting sleeve directly replaces the factory stamped steel, split tube design. The seamless sleeve features 11/16-18 thread with 1” hex to facilitate precise toe adjustment and tightening of the zinc plated jam nuts. Left-handed threads are indicated by offset position of the sleeve hex and yellow zinc coating on jam nuts. A 50% greater wall thickness and a 40% larger thread contact area provide improved strength over the factory design and eliminate any sleeve deflection. Internal threads extend 1-3/4” to a centered stop enabling a total adjustment range of 2-1/8”.

Billet Tie Rod Adjuster Sleeves
Purchase ItemTCP TIER-04 (replaces MOOG-ES2004S)
Model Year
Comet 1963-1972
Cougar 1967-1972
Cyclone 1966-1971
Fairlane 1962-1970
Falcon 1963-1970
Maverick 1970-1972
Mustang 1965-1973
Ranchero 1962-1971
Torino 1968-1971

Expanded
Applications Chart

Sleeves with Tie Rods

Adjuste Sleeve with Tie Rods

Adjuster sleeves are sold seperately or as complete sets including tie rods. Please refer to our product applications tabel or catalog for a list of specific vehicle applications.

Model Year
Comet 1960-19641
19651 or 2
1971-1972
Cougar 1967-1970
Cyclone 19641
19651 or 2
Falcon 1960-19641
19651 or 2
Maverick 1970-1972
Mustang 19641
1965-19661 or 2
1967-1973
Ranchero 1960-19641
19651 or 2

Expanded
Applications Chart

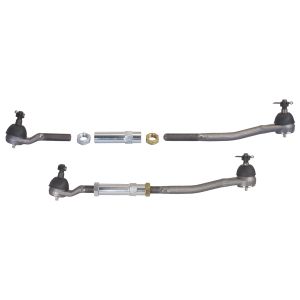

Adjuster Sleeve and Tie Rod Sets
Purchase ItemTCP TIER-05 - Mustang 65-66 for OEM Spindle
Purchase ItemTCP TIER-16 - Mustang 65-66 Inner to Mustang 70-73 or TCP SPND-01 Spindle
Purchase ItemTCP TIER-18 - Mustang 65-66 Inner to Granada 75-80 or TCP SPND-04 Spindle

Purchase ItemTCP TIER-06 - Mustang 67-69 for OEM Spindle
Purchase ItemTCP TIER-17 - Mustang 67-69 inner to Mustang 70-73 or TCP SPND-01 Spindle
Purchase ItemTCP TIER-19 - Mustang 67-69 inner to Granada 75-80 or TCP SPND-04 Spindle

Purchase ItemTCP TIER-07 - Mustang 70-73 for OEM or TCP SPND-01 Spindle
Purchase ItemTCP TIER-20 - Mustang 70-73 inner to Granada 75-80 or TCP SPND-04 Spindle

Footnotes
* Verify each shaft diameter and sleeve length prior to ordering. (Shaft = .688", Sleeve = 4.7")
1 Installation requires TCP Rack and V8 spindles
2 V8 with OEM Manual Steering
